Description

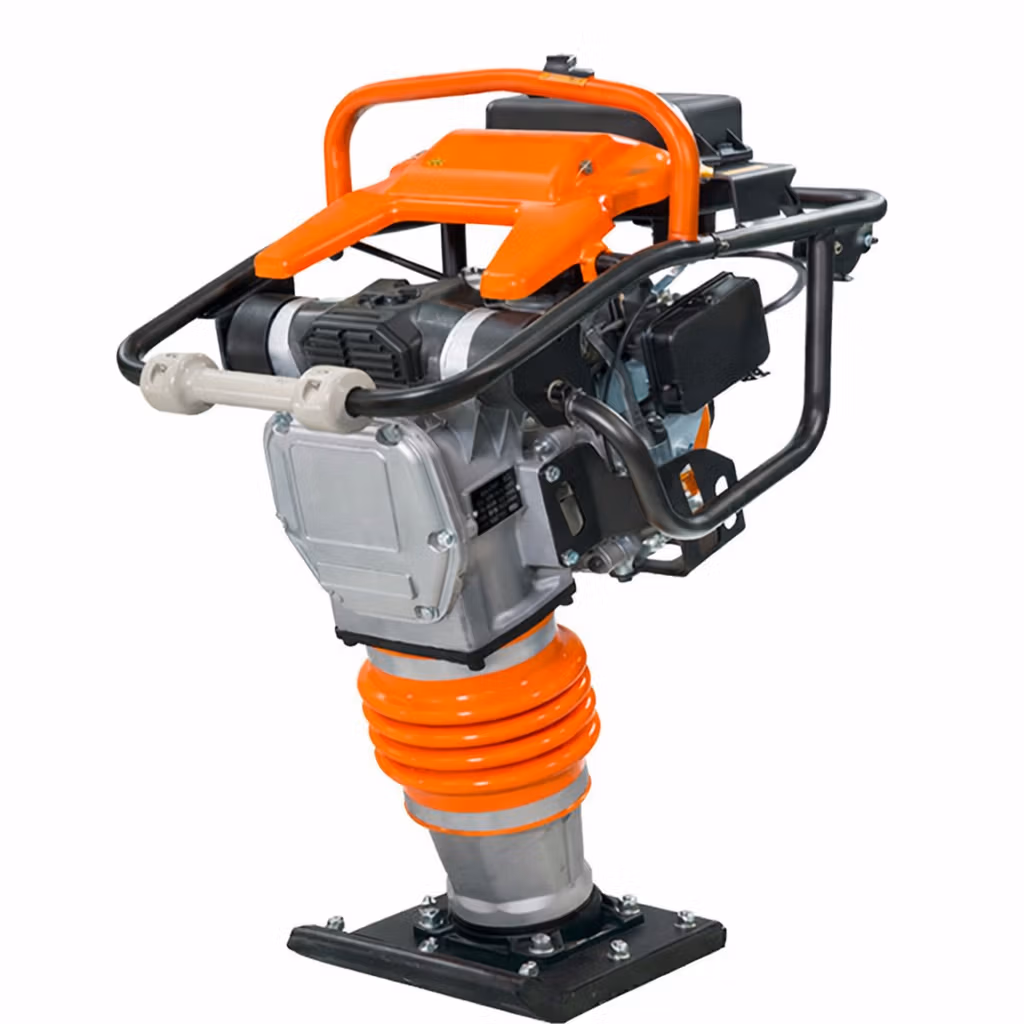

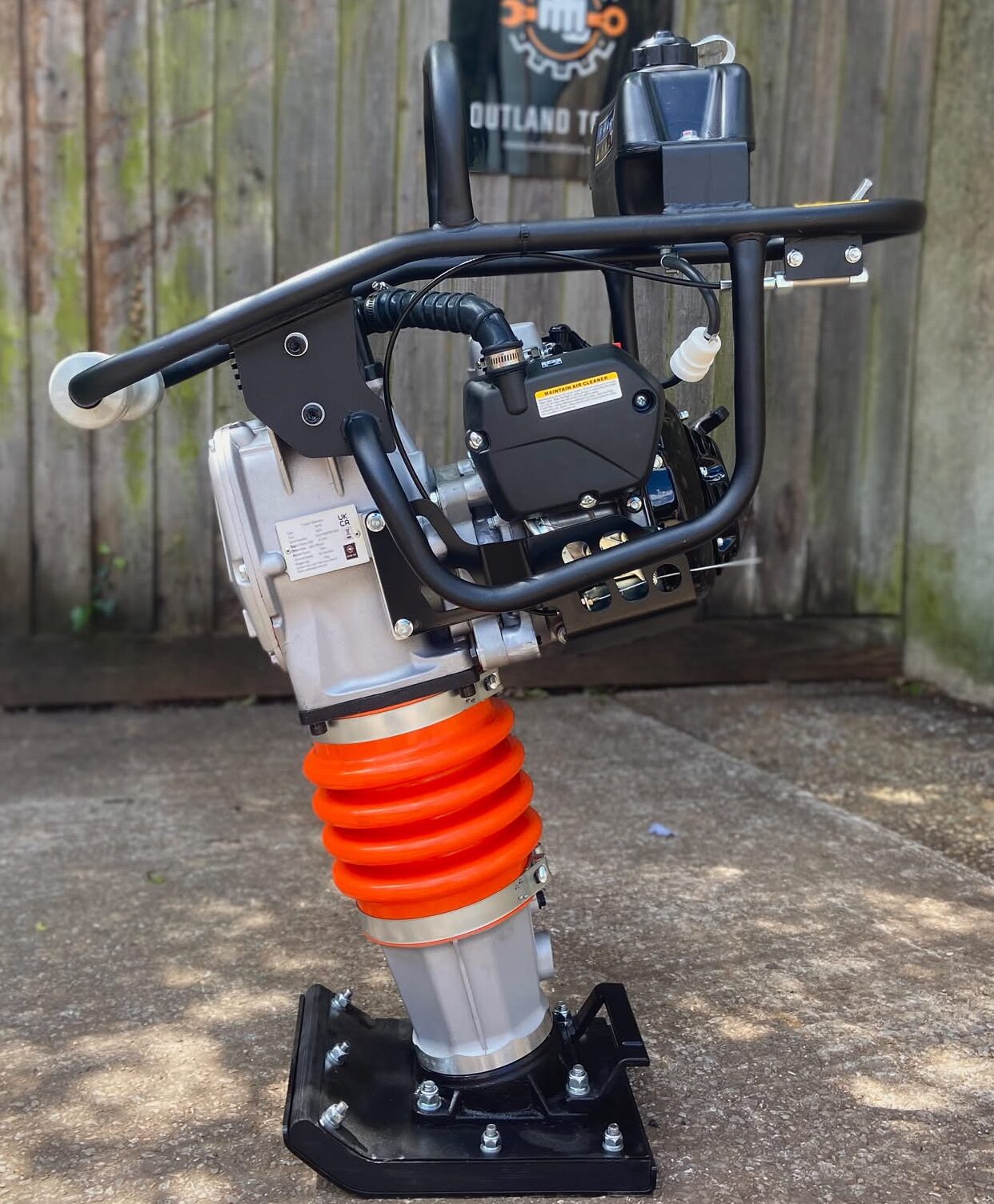

Outland Tools TM78 Petrol Tamping Rammer 345 x 285mm Foot

Introduction

The Outland Tools TM78 Petrol Tamping Rammer is a powerful and reliable compaction machine designed for construction, groundwork, and landscaping projects. It delivers strong compaction performance in trenches, foundation areas, and backfilled ground.

Powered by a dependable 4-stroke petrol engine, the TM78 combines durability, efficiency, and ease of use. Its compact design allows operators to work effectively in confined spaces while achieving consistent compaction results.

Engine Performance and Specifications

The TM78 features a single-cylinder 4-stroke OHV petrol engine that produces 3.6HP. With a displacement of 210cc, the engine delivers the power needed for demanding compaction tasks.

In addition, the recoil start system allows quick and simple engine starting. A 2.5-litre fuel tank supports longer working periods between refuelling, helping to improve productivity on site.

Key Engine Features

• 3.6HP 4-stroke OHV petrol engine
• 210cc engine displacement
• Easy recoil starting system
• 2.5-litre fuel tank capacity
• Reliable and fuel-efficient operation

Compaction Performance

The TM78 delivers a compaction force of up to 1,400kg/m², making it suitable for both cohesive and granular soils. As a result, operators can create stable surfaces and strong foundations for a variety of construction applications.

Furthermore, the machine operates at a percussion rate of 640 to 680 blows per minute. Combined with a tamping amplitude of 40 to 80mm, this helps transfer energy efficiently into the ground for excellent compaction results.

Compaction Benefits

• Strong impact force for demanding applications
• Suitable for clay, soil, sand, and gravel
• Fast and effective ground compaction
• Helps reduce future settlement
• Creates stable foundations and sub-bases

Design and Dimensions

The TM78 features a 345 x 285mm tamping foot, which provides excellent coverage while maintaining precision in confined spaces. This balanced design allows operators to work efficiently in narrow trenches and restricted access areas.

The machine travels at a forward speed of 10 to 13 metres per minute, helping users complete projects quickly. With a net weight of 76kg, the rammer offers an effective balance between impact force and manoeuvrability.

Machine Specifications

• Tamping foot size: 345 x 285mm
• Forward speed: 10–13m/min
• Net weight: 76kg
• Percussion rate: 640–680 blows per minute
• Amplitude: 40–80mm

Operator Comfort and Safety

Outland Tools designed the TM78 with operator comfort in mind. The vibration-reducing handle helps minimise fatigue during extended periods of use.

In addition, the ergonomic handle design improves control and handling. Operators can therefore maintain accuracy while working in demanding ground conditions.

The machine also includes transport wheels for easier movement around the site. A protective engine cover helps shield key components from dust, debris, and accidental damage.

Operator Advantages

• Reduced vibration levels
• Improved handling and control
• Enhanced operator comfort
• Integrated transport wheels
• Protective engine cover

Common Applications

Trench Compaction

The TM78 provides excellent performance when compacting trenches for utility services, drainage systems, and pipe installations. Proper soil compaction helps minimise future ground movement and settlement.

Foundation Preparation

Contractors can use the TM78 to prepare stable ground before pouring concrete foundations. A well-compacted base helps improve structural strength and long-term performance.

Backfill Compaction

The machine effectively compacts backfilled soil around structures and utilities. Consequently, it reduces the risk of voids and uneven settlement.

Road and Pathway Construction

The TM78 helps create durable sub-bases for driveways, pathways, paving projects, and small road construction work. As a result, finished surfaces benefit from greater stability and longevity.

Maintenance and Durability

Outland Tools builds the TM78 using durable components designed for demanding site conditions. Its robust construction helps ensure reliable long-term performance and reduced downtime.

Regular maintenance can further extend the machine’s service life. Operators should routinely check engine oil levels, inspect the air filter, and examine the tamping foot for signs of wear.

Additionally, the design provides easy access to essential service points, making routine maintenance faster and more convenient.

Why Choose the Outland Tools TM78?

The Outland Tools TM78 Petrol Tamping Rammer combines strong compaction performance, durable construction, and operator-friendly features in a compact package. Its 345 x 285mm foot, powerful 210cc engine, and high-impact compaction force make it well suited to trench work, foundation preparation, backfill compaction, and landscaping projects.

Whether you’re a professional contractor or a serious DIY user, the TM78 delivers dependable performance, excellent manoeuvrability, and reliable compaction results across a wide range of applications.



Video show the similar Lumag VS80C
