Firewood Processor 20ton Splitting 50cm Cut hydraulic control PTO Drive Lumag SSA50020PROZ

Description

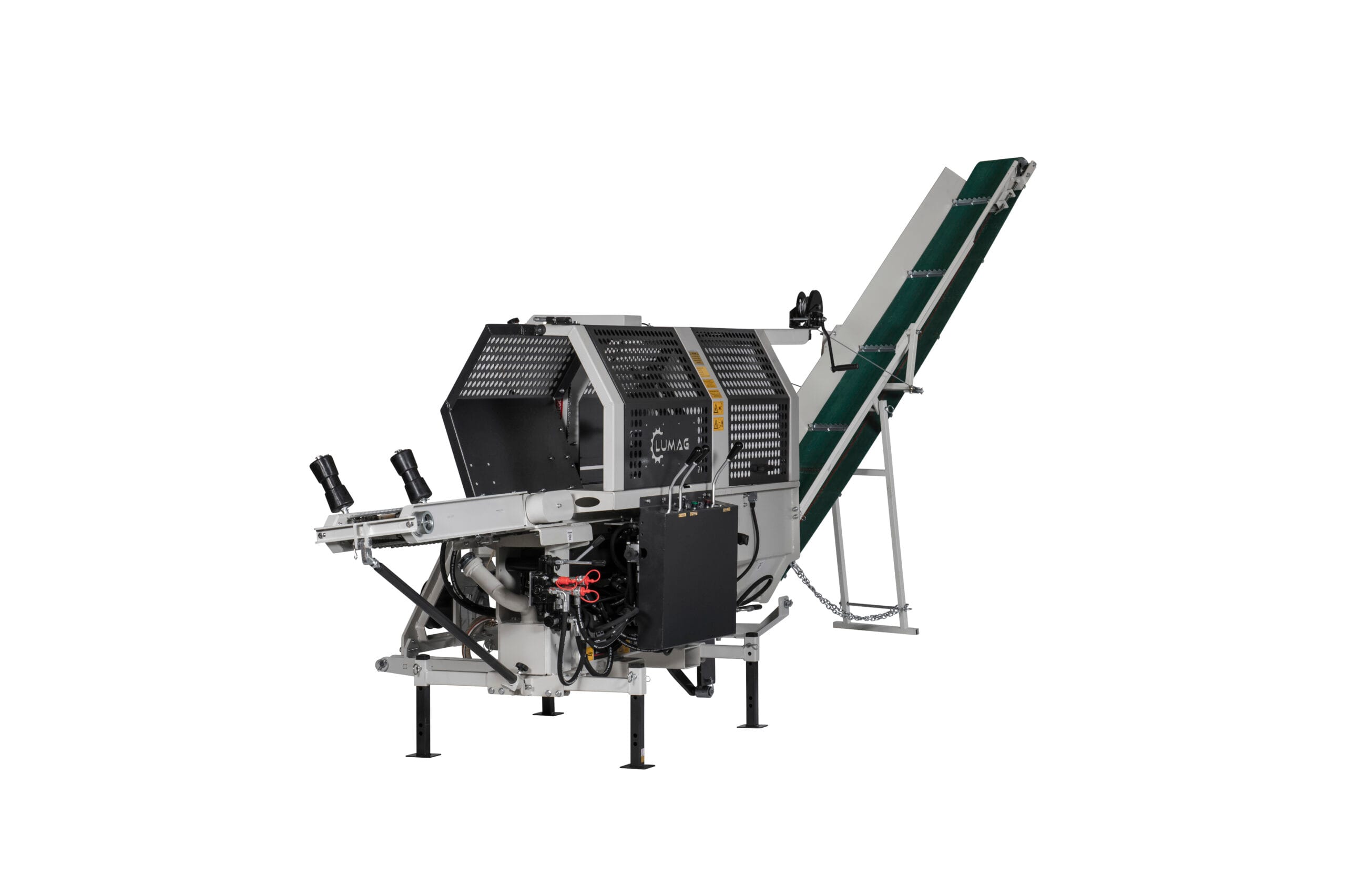

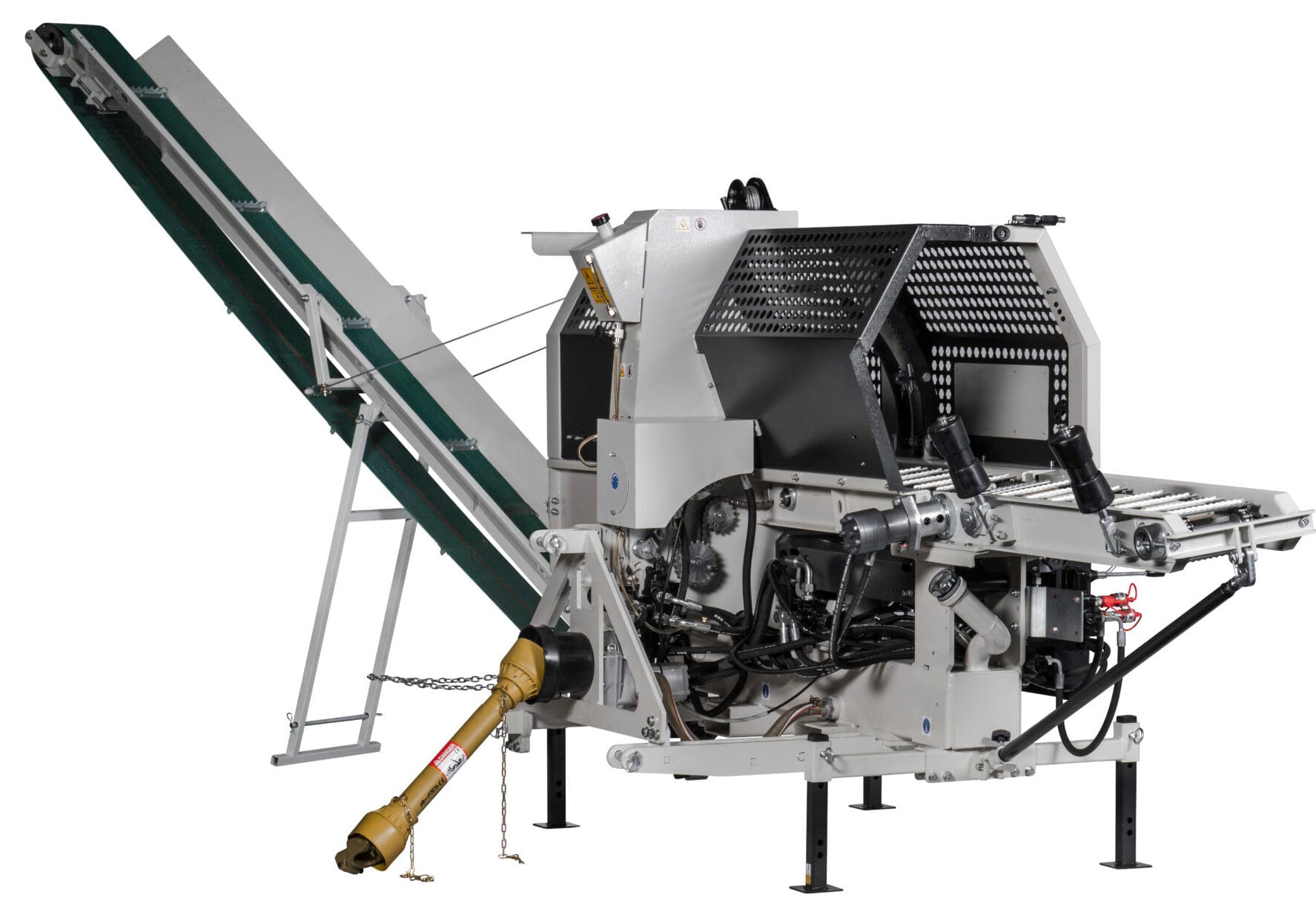

Lumag SSA-500-20PRO/Z PTO Firewood Processor – 20 Ton Automatic Log Saw & Splitter

The Lumag SSA-500-20PRO/Z is a heavy-duty PTO-driven firewood processor designed for professional timber and firewood production. Built for contractors, forestry operators, farms, estates, and commercial firewood businesses, this powerful machine combines sawing, splitting, conveying, and material handling into one highly productive system.

Powered directly from a tractor PTO, the SSA-500-20PRO/Z delivers impressive processing capacity while maintaining low running costs. As a result, it provides an efficient solution for producing large volumes of firewood with minimal manual handling.

PTO Driven Performance

The SSA-500-20PRO/Z operates from a tractor PTO and requires approximately 20HP. Designed for a maximum PTO speed of 540 RPM, it makes full use of your tractor’s hydraulic power for dependable and consistent operation.

Furthermore, the PTO drive system eliminates the need for a separate engine, making it an economical choice for professional users.

Processes Logs up to 500mm Diameter

The machine handles logs from 100mm to 500mm in diameter and cuts timber into lengths of up to 610mm. Consequently, it can process everything from smaller firewood logs to large hardwood stems with ease.

• Maximum log diameter: 500mm
• Maximum splitting length: 610mm
• Suitable for softwood and hardwood
• Professional firewood production

Hydraulic Chainsaw System

The SSA-500-20PRO/Z uses a hydraulic chainsaw powered by a high-quality PARKER hydraulic motor. Lumag also equips the machine with a premium OREGON guide bar and OREGON chain for reliable cutting performance and long service life.

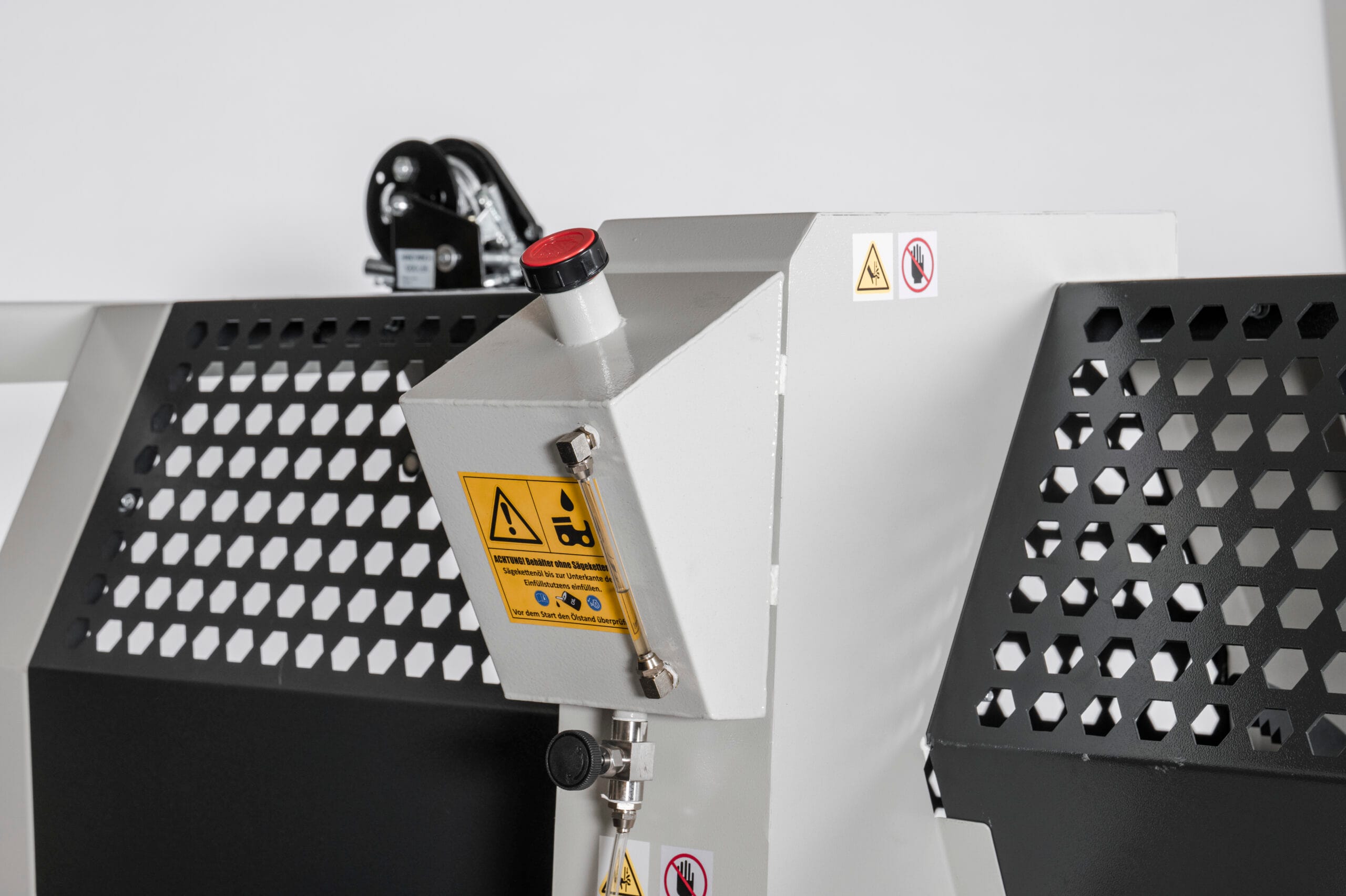

Additionally, the new manual chain lubrication system helps maintain cutting efficiency while extending component life.

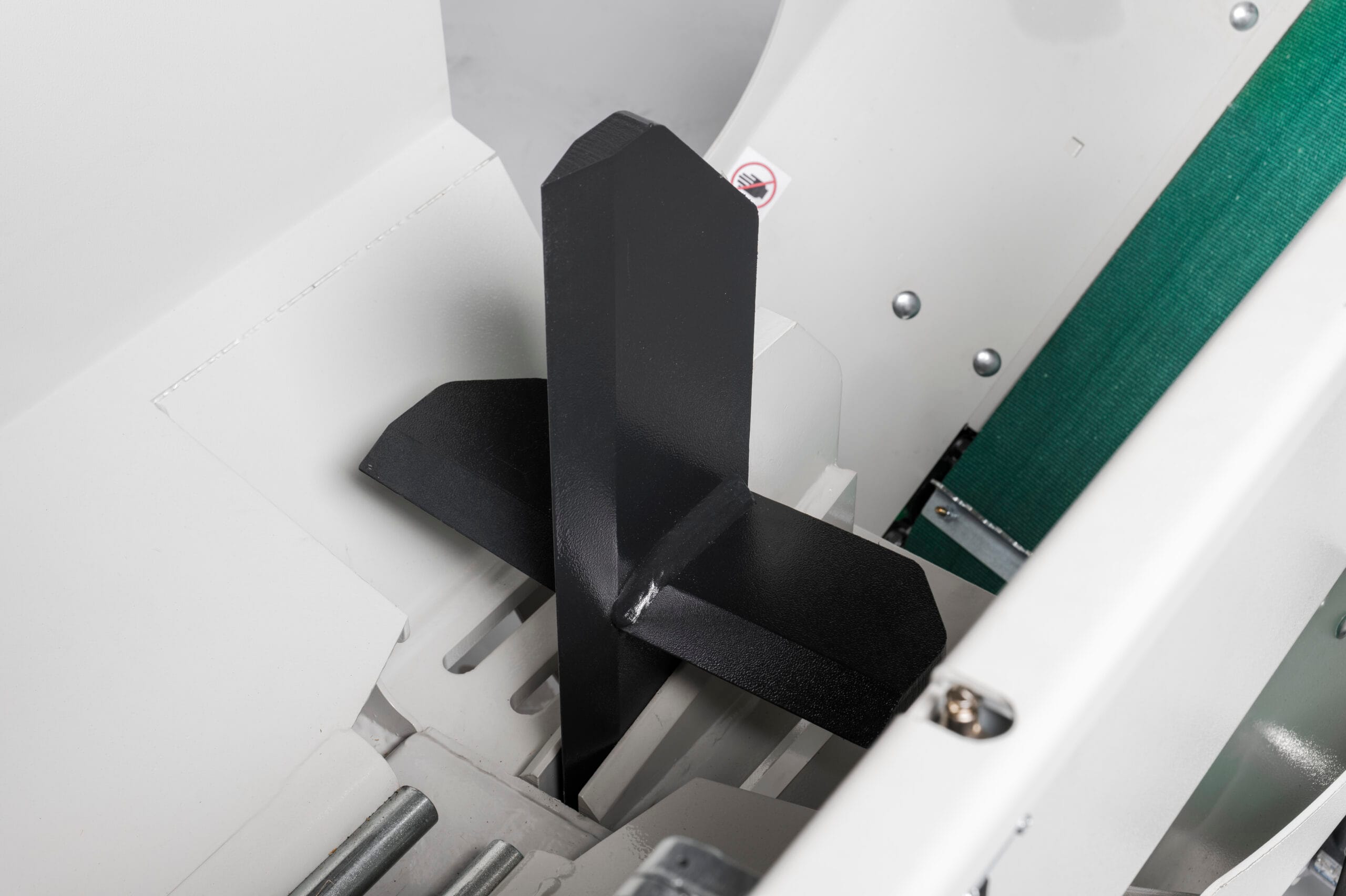

Powerful 20-Ton Splitting Force

The heavy-duty hydraulic splitter produces an impressive 20 tonnes of splitting force. Therefore, it handles difficult, knotty, and seasoned timber efficiently.

The machine completes a splitting cycle in approximately 8 seconds, helping maximise daily firewood output.

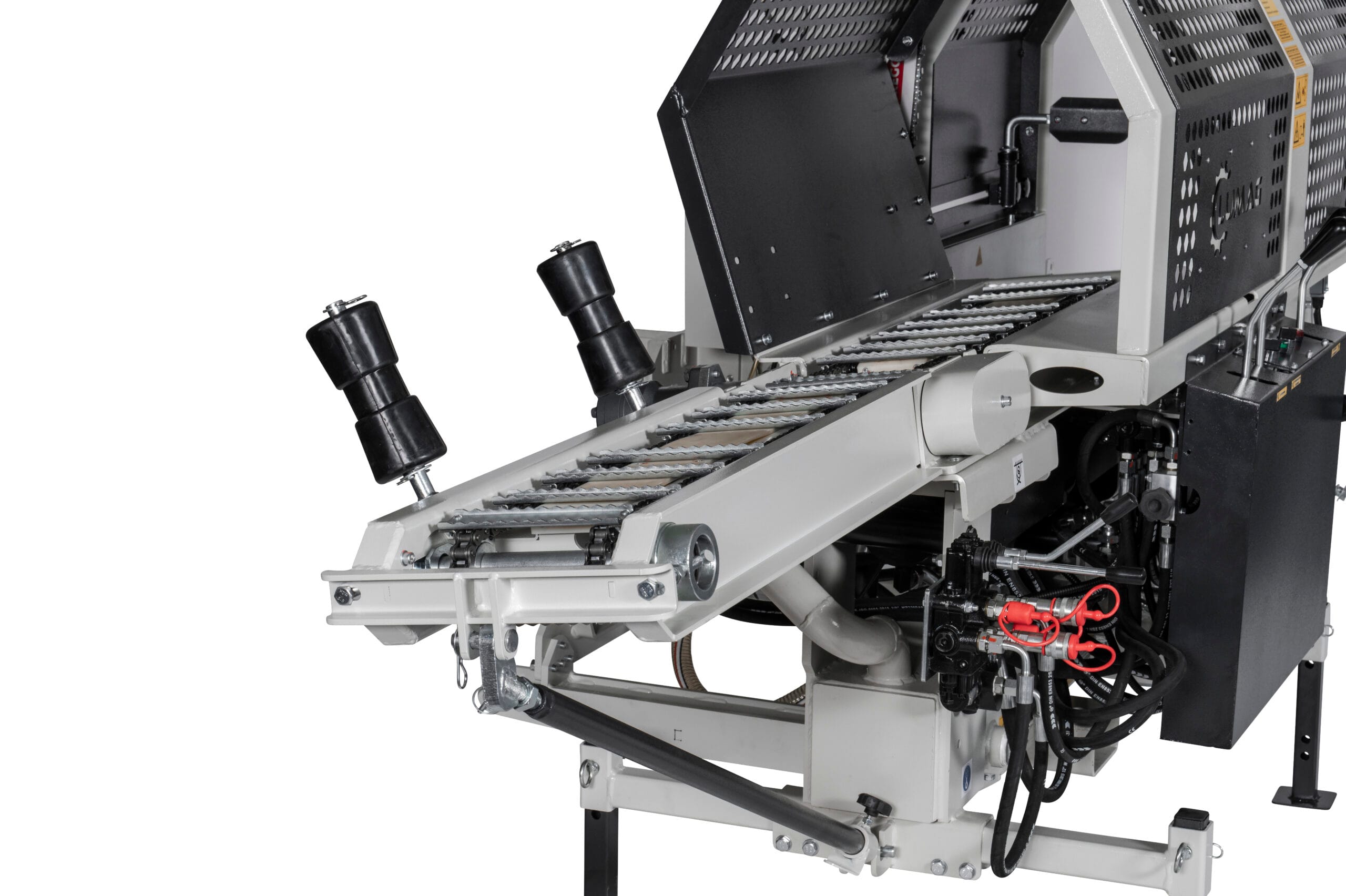

Automatic Log Feeding System

The wide hydraulic infeed conveyor automatically transports logs into the processing chamber. Reinforced conveyor paddles improve durability and ensure reliable feeding even when processing larger timber.

As a result, operators can spend less time moving material and more time producing firewood.

Hydraulic Outfeed Conveyor

The included conveyor automatically removes processed firewood from the splitting area. Furthermore, the conveyor features height adjustment and a practical swivel function, allowing timber to be discharged directly into trailers, bags, or storage piles.

This automated system improves workflow and significantly reduces manual handling.

Premium Components Throughout

The SSA-500-20PRO/Z incorporates premium components throughout its design, including PARKER hydraulic pumps, PARKER hydraulic motors, and OREGON cutting equipment. These high-quality parts provide excellent durability and dependable performance in demanding environments.

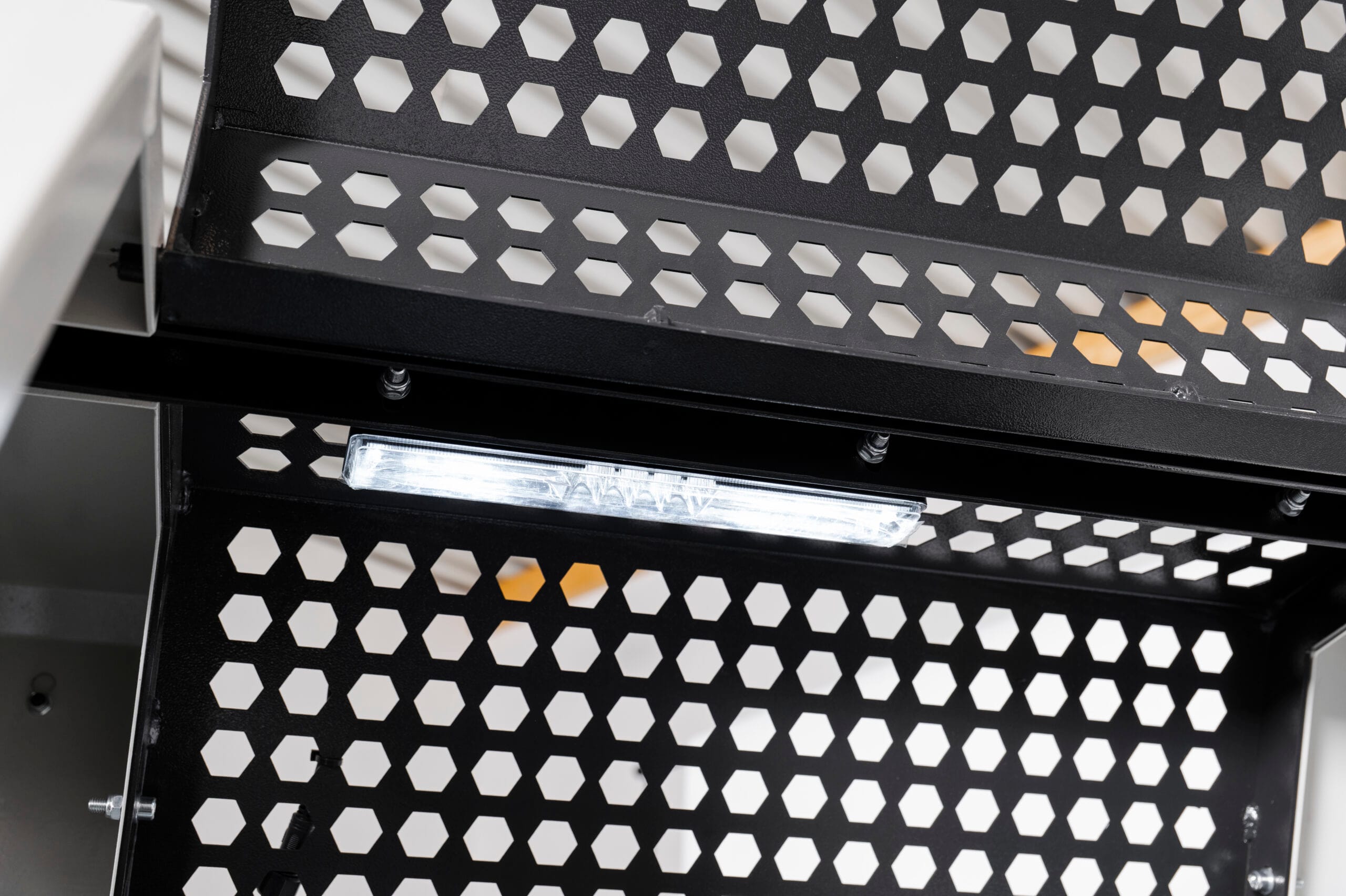

Additionally, LED work lighting and the 2+1 control valve system improve operator convenience and productivity.

Designed for Professional Productivity

Several upgraded features help maximise efficiency, including a flexible log stop, reinforced conveyor flights, a cleaning opening in the splitting channel, and mechanical anti-jamming guides. Consequently, the machine operates more smoothly and experiences fewer interruptions during long production runs.

Key Features

• PTO driven firewood processor
• Requires approximately 20HP tractor
• Maximum PTO speed: 540 RPM
• 20-ton splitting force
• Maximum log diameter: 500mm
• Maximum split length: 610mm
• Hydraulic PARKER chainsaw system
• OREGON chain and guide bar
• Hydraulic infeed conveyor
• Height-adjustable swivel outfeed conveyor
• LED work light
• Approximate 8-second splitting cycle

Why Choose the Lumag SSA-500-20PRO/Z?

The Lumag SSA-500-20PRO/Z combines powerful splitting performance, automated material handling, and premium hydraulic components into one professional firewood production system. Moreover, its PTO-driven design offers low operating costs while delivering the production capacity demanded by commercial users.

Whether you operate a firewood business, manage woodland, or process timber on a large estate, the SSA-500-20PRO/Z provides the speed, reliability, and efficiency needed to maximise output and profitability.



Video show the PETROL model .
